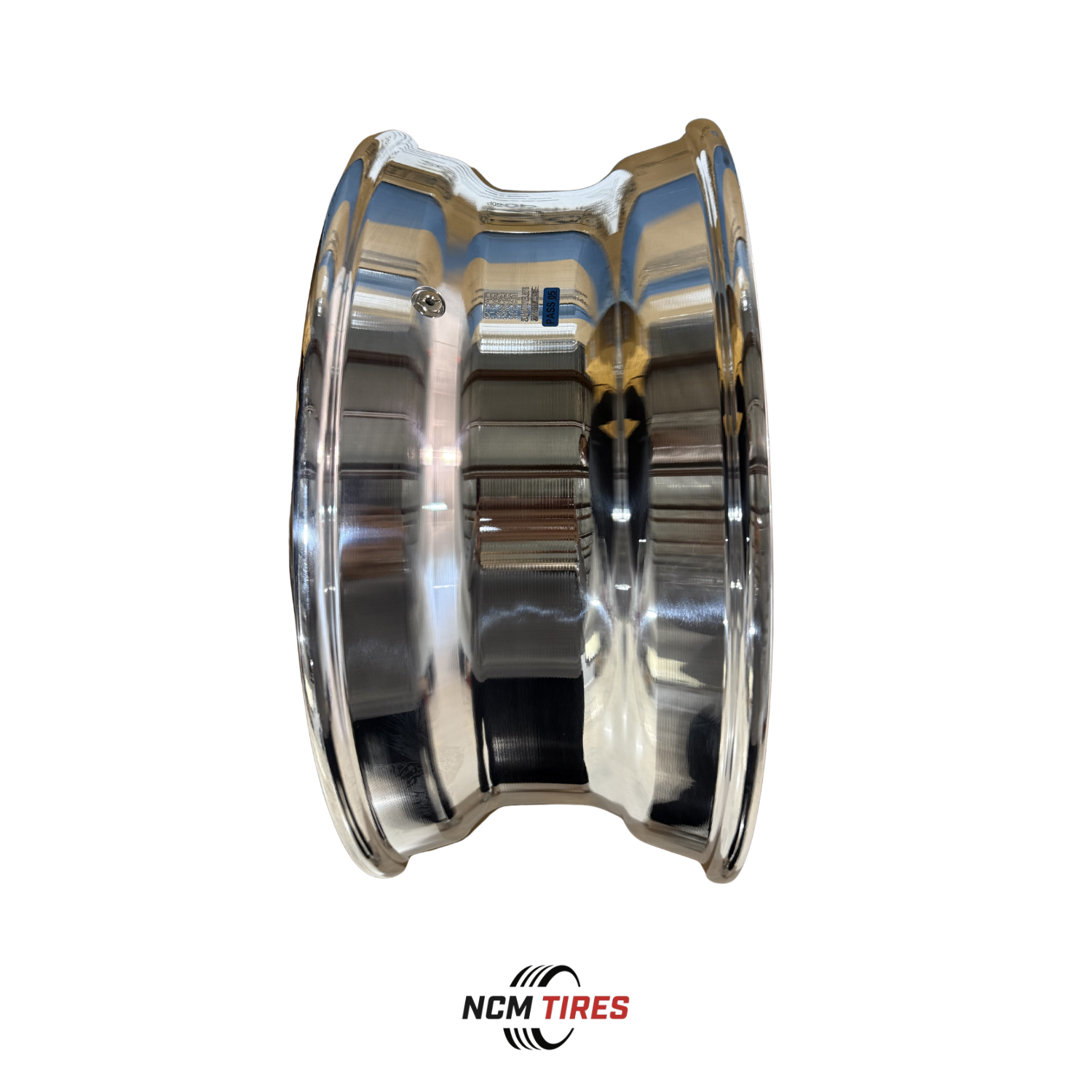

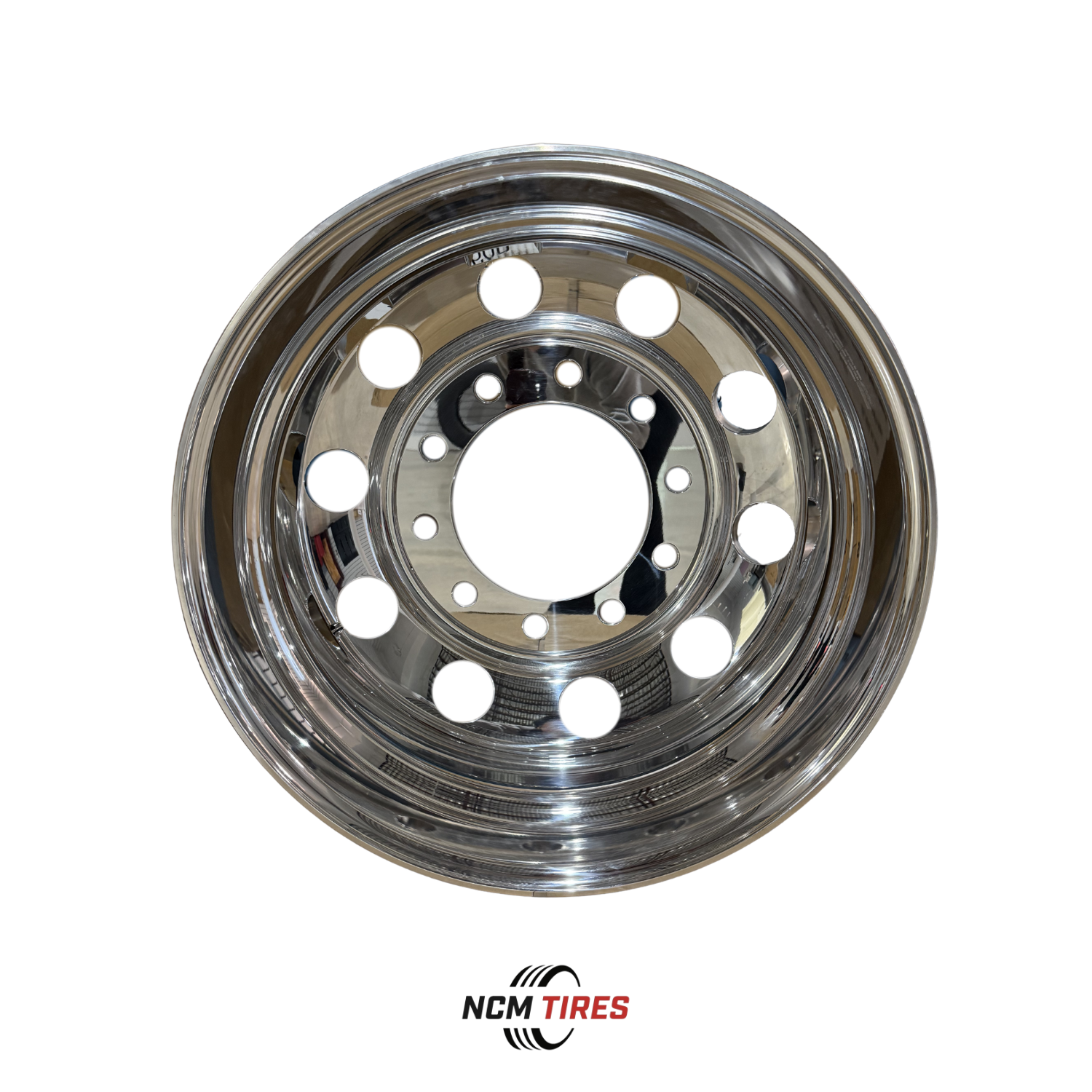

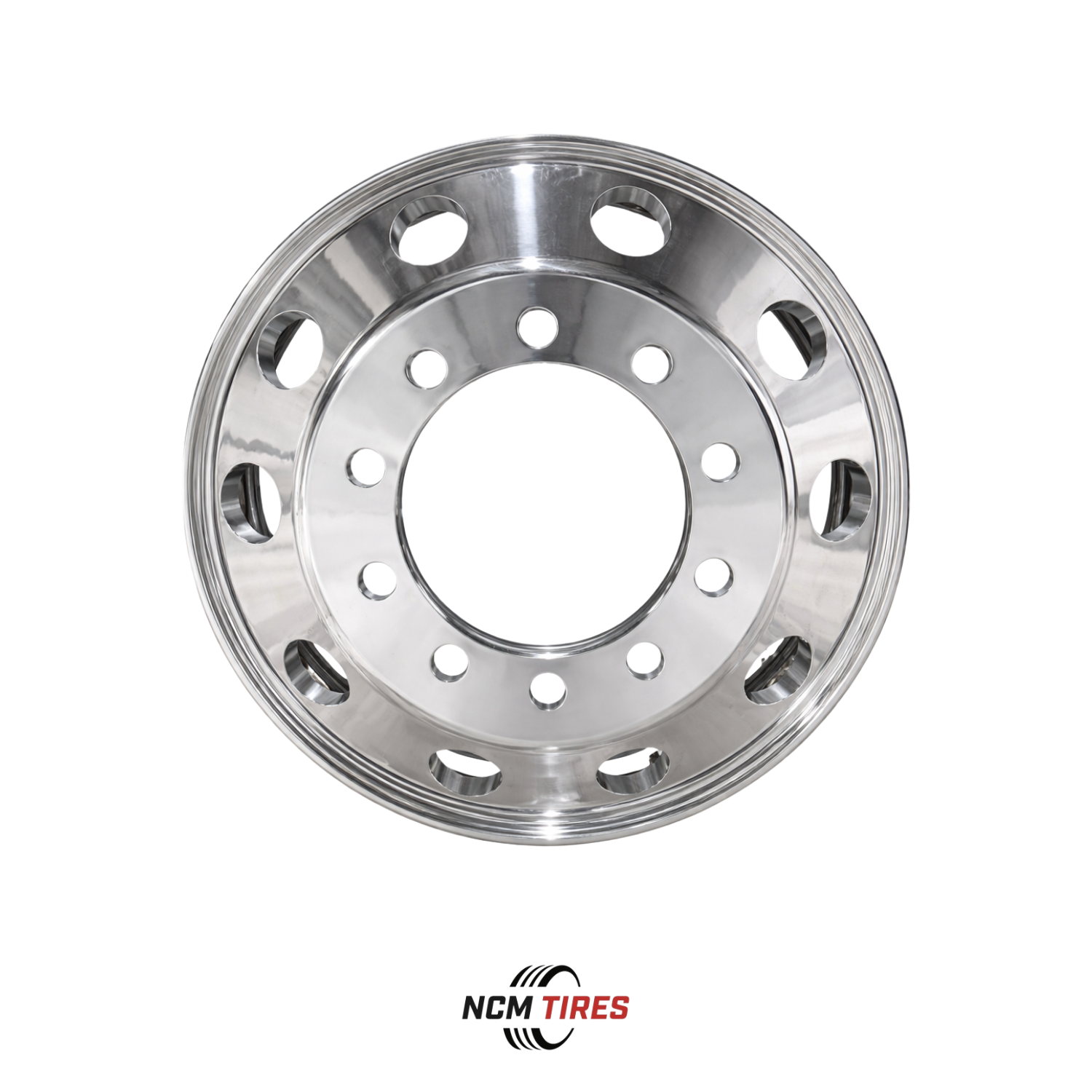

The 24.5x8.25 Alcoa-Style Forged Aluminum Truck Wheel is built for durability, strength, and performance in demanding commercial applications. Designed for trucks, trailers, and buses, this wheel delivers a lightweight alternative to steel while maintaining high load capacity.

With a precision-engineered hub-piloted 10-hole design, it ensures proper alignment, reduced vibration, and reliable performance on the road.

Product Specifications

Size: 24.5 x 8.25 inches
Bolt Pattern (PCD): 10 × 285.75 mm (10 × 11.25")
Center Bore: 220 mm (8.66")
Offset: 169 mm (6.65")
Stud Hole Diameter: 26 mm (1.02")
Valve Hole Diameter: 17.5 mm (0.669")
Disc Thickness: 24 mm (0.944")
Ventilation Holes: 10
Mounting Type: Hub Piloted
Max Load: 8040 lbs (3650 kg)
Recommended Valve: TR554D
Finish: Mirror Polished (Alcoa-Style)

Truck Wheel Mirror Polished Aluminum Wheel Size 24.5X8.25

F.E.T Included In All Prices.

Since it is an oversized package, it will be shipping LTL. Please let us know if the delivery address will be a residential or commercial address.

Once order is placed, a customer service rep will contact you to confirm details.
